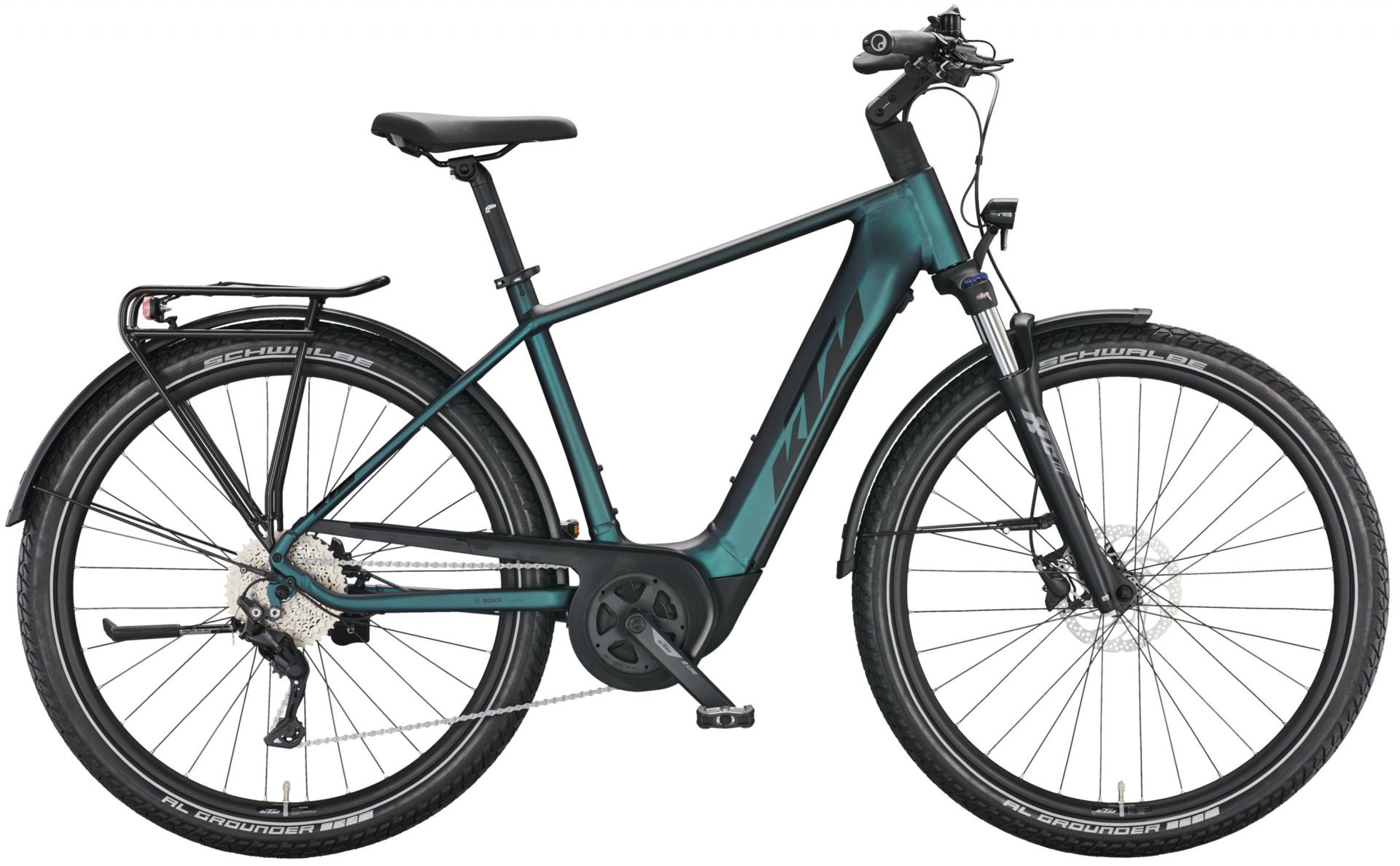

KTM Macina Gran P610 2022

Urban e-Bike

KTM

Verfügbarkeit prüfen

Zusätzliche Information

im Überblick
e-Bike Typ Urban e-Bike
Modelljahr 2022
Motorunterstützung 25
Schaltung Hersteller Shimano
Schaltungstyp Kettenschaltung
Federung Federgabel
Bremsentyp Hydraulische Scheibenbremse
Rahmengröße 46, 51, 56, 60, 43
Reifengröße 27,5''
Rahmenform Diamant, Trapez, Komfort
Antriebseinheit
Motor Bosch Performance Line 3.0 36V 250W
Akku 625 Wh
Display Bosch Intuvia, LCD-Display mit Remote
Ladegerät Bosch COMPACT Charger 2A
Schaltung & Antrieb
Schaltung Shimano Deore M4120, 10-Gang Kettenschaltung
Schalthebel Shimano Deore M4100-10 display
Schaltwerk Shimano Deore M4120-10, SGS, Shadow, 10-Gang
Kurbelsatz KTM LINE BNI, 170 mm
Kassette Shimano Deore M4100-10, 11-42T
Kette KMC e10 EPT e-bike
Rahmen & Gabel
Rahmen Macina Trekking Onroad, 6061 Aluminium
Gabel Suntour XCM 32 ATB coil 27,5'' NLO, 80 mm Federweg
Steuersatz Acros AICR internal 1.1/8''-1.5'' angle limit
Bremse
Bremsanlage Shimano MT200, 2-Kolben, v: 180 mm/h: 160 mm
Laufräder
Felgen Ryde Rival30, 32H
Naben (V/H) KTM Line - Shimano Deore M6000 CL, 32H / KTM Line - Shimano Deore M6000 CL, 32H
Speichen DT Champion 2.0, schwarz/DT Alpine II 2.34, schwarz
Reifen Schwalbe Al Grounder Performance, 60-584, RT Addix
Cockpit
Lenker Ergotec Lady Town GH16, 630 mm
Vorbau KTM Line, verstellbar 0-60° internal
Lenkergriffe Ergon GP1 SD
Sattelstütze KTM Line, 30,9 x 350 mm
Pedale VP-616, Trekking-Pedale, Anti-Rutsch
Sattel Selle Royal Essenza Lady
Ausstattung
Frontlicht Busch & Müller Lumotec DOPP, LED, 35 Lux
Rücklicht Busch & Müller Toplight 2C, LED
Gepäckträger KTM Racktime light (snap-it 1.0)
Schutzbleche SKS A69R, 69 mm, mattschwarz
Kettenschutz KTM type 6 für Bosch GEN4
Ständer KTM 28'', einstellbar
Sonstiges
Gewicht 27,8 kg
Zulässiges Gesamtgewicht 147 kg
