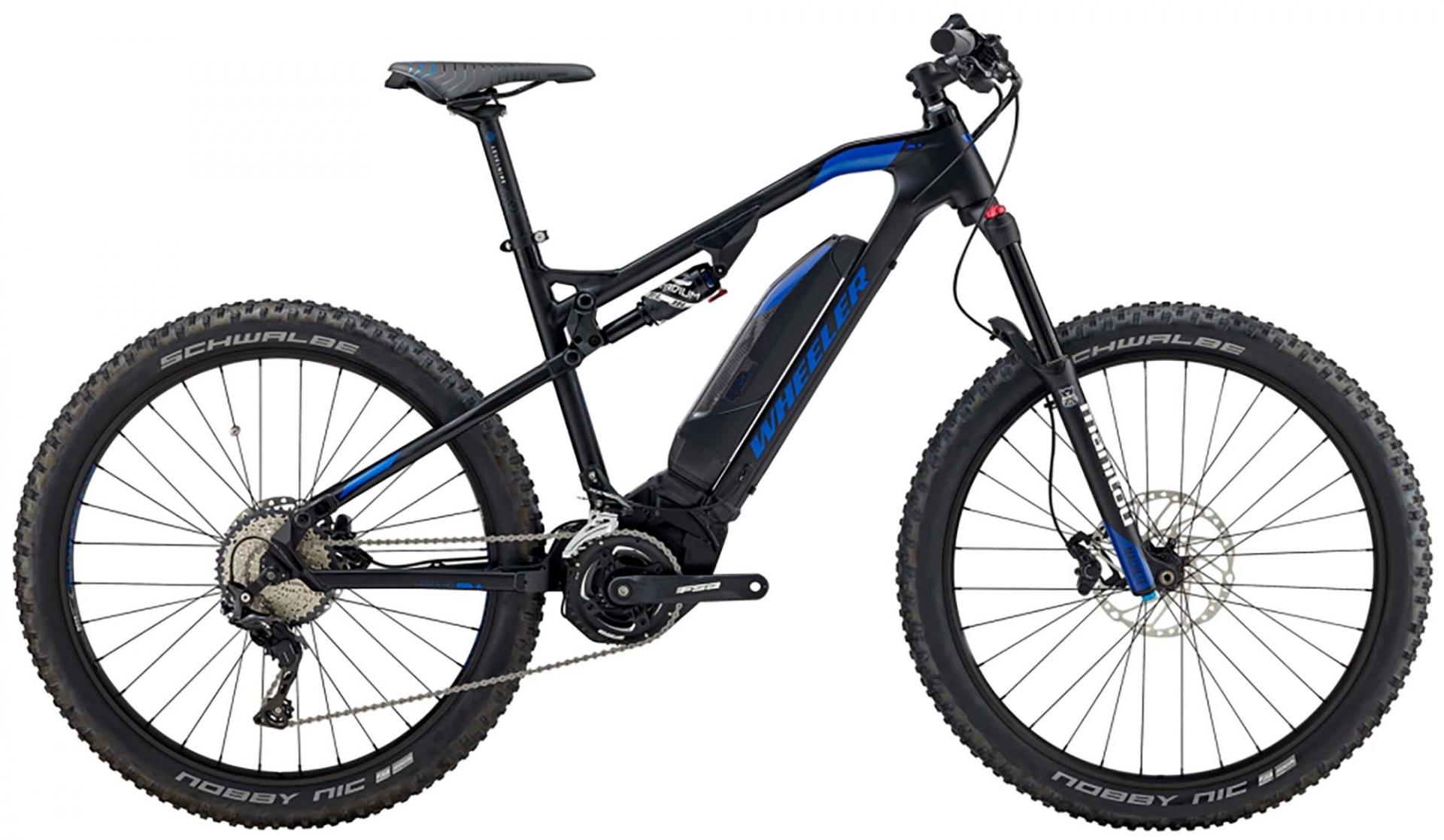

| e-Bike Typ |
e-Mountainbike |
| Modelljahr |
2017 |
| Motorunterstützung |
25 |
| Schaltung Hersteller |
Shimano |
| Schaltungstyp |
Kettenschaltung |
| Federung |
Fully |
| Bremsentyp |
Hydraulische Scheibenbremse |
| Farbe |
schwarz, blau |
| Rahmengröße |
17'', 19'', 21'' |
| Reifengröße |
27,5'' |
| Rahmenform |
MTB Fullsuspension |
| Motor |
Yamaha PW-X 36V 250W |
| Akku |
500 Wh |
| Schaltung |
Shimano XT, 11-Gang |
| Schalthebel |
SHIMANO BR-M447, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:180 |
| Umwerfer |
SHIMANO SLX FD-M7020D, DIRECT MOUNT, SIDE SWING |
| Schaltwerk |
SHIMANO XT RD-M8000 GS SHADOW PLUS DESIGN, TOP NORMAL, DIREC |
| Kurbelsatz |
FSA CK745/ISIS, BOOST, 38-28 TEETH |
| Kassette |
SHIMANO CS-M7000, 11-42 THEETH, 11-SPEED |
| Kette |
SHIMANO CN-HG601-11 |
| Rahmen |
ALLOY 6061 D.B., 140mm TRAVEL, 27.5''+ |
| Gabel |
MANITOU MACHETE 27.5'' PLUS, TS AIR SPRING, 140mm TRAVEL, TAPERED, 15X110mm AXLE |
| Steuersatz |
FSA NO. 57, 1-1/8'' UPPER AND 1.5'' LOWER BEARING WITH 8mm T |
| Dämpfer |
MANITOU RADIUM EXPERT, 190mm LENGTH, HYDRAULIC DAMPING, EXTE |
| Bremsanlage |
SHIMANO BR-M447, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:180 |
| Bremshebel |
SHIMANO BL-M506, ISPEC B |
| Felgen |
ALEXRIMS XM-35, 32 HOLES, INNER WIDTH 35mm, 27.5'' |
| Naben (V/H) |
SHIMANO DEORE HB-M618-B / 32 HOLES |
| Reifen |
SCHWALBE NOBBY NIC PERFORMANCE LINE, 27.5x2.8'' |
| Lenker |
LEVELNINE Race, 740mm, 9° ANGLE, 15mm RISE, 31.8mm |
| Vorbau |
LEVELNINE RACE, BARBORE: 31.8mm, 1 1/8'', ANGLE:6° |
| Sattelstütze |
LEVELNINE RACE , 12mm OFF SET, 31.6x400mm |
| Pedale |
WELLGO WAM-M18 |
| Sattel |
SELLE ROYAL, SUEZ PERFORMA |
| Gewicht |
22,7 kg |
| Zulässiges Gesamtgewicht |
130 kg |
